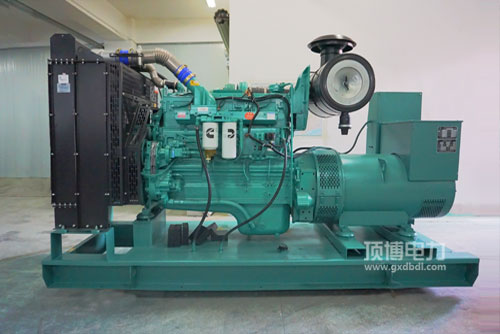

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打火机然油第三产业性好: 优秀的然油管理操作软件，具有的STC、ESTC 分级制度管理操作软件，非常规设计的概念的活塞件上边熔化室，直流电喷涌然油，全面吸雾，熔化全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用汽车发驱力瞬态稳定性市场大的: 更好的汽车发驱力整体的设计，相互配合康明斯与众不同的EFC把控系统，把控精密度较高，积极响应时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打火机升效率高: 总布局方案紧密.外观布置图合理的，加载市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50需求华人非路线3阶段中，及南美Tier2. Tier 3进行排放条例标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件而犯性好， 汽车发思想加载及保护清洁便捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率区域 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯并网发电用打火机的特性：体型小， 缩减变高， 防雨百叶水汽高温，有利于开机，移动式车载电子交流电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启因素产品型号	最常见额定功率(kW)Prime Power	备用电源工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
